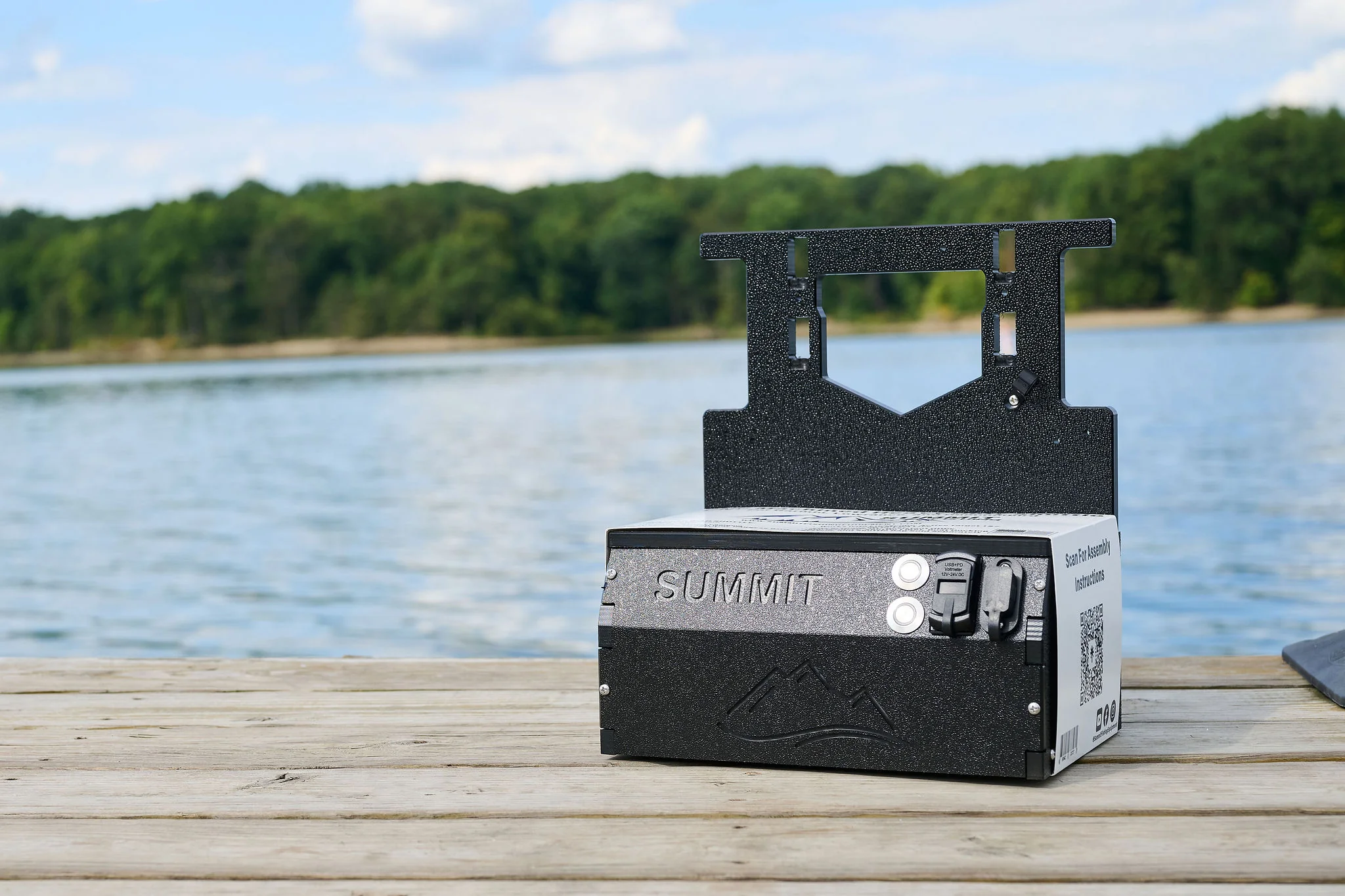

Summit Heavy Duty Shuttle For Garmin, Lowrance, and Humminbird

Summit Fishing, the pioneer of forward-facing sonar portability, introduces the next-generation shuttle, guaranteed to be the strongest, most versatile, and safest shuttle on the market. Based on the original and best-selling Summit Shuttle designed in 2018, this shuttle features numerous revisions to enhance functionality and durability. Made in the USA, proudly machined and assembled in Summit Fishing's facility.

Precision CNC machined from Marine Grade UV-resistant HDPE, the Heavy-Duty shuttle effortlessly carries loads exceeding 1,500 lbs, surpassing all other shuttles in comparison testing. Weighing less and holding more, it eliminates concerns about short-circuit arc dangers from aluminum shuttles. (Pole holder/Light sold separately. Link Below)

• Garmin Livescope Assembly Instructions
• Wiring the Summit HD CNC Shuttle with a Factory Cable
• Wiring the Summit HD CNC Shuttle with the Garmin All-In-One Cable
• How to Hook Up Battery Charger to Summit HD CNC Shuttle

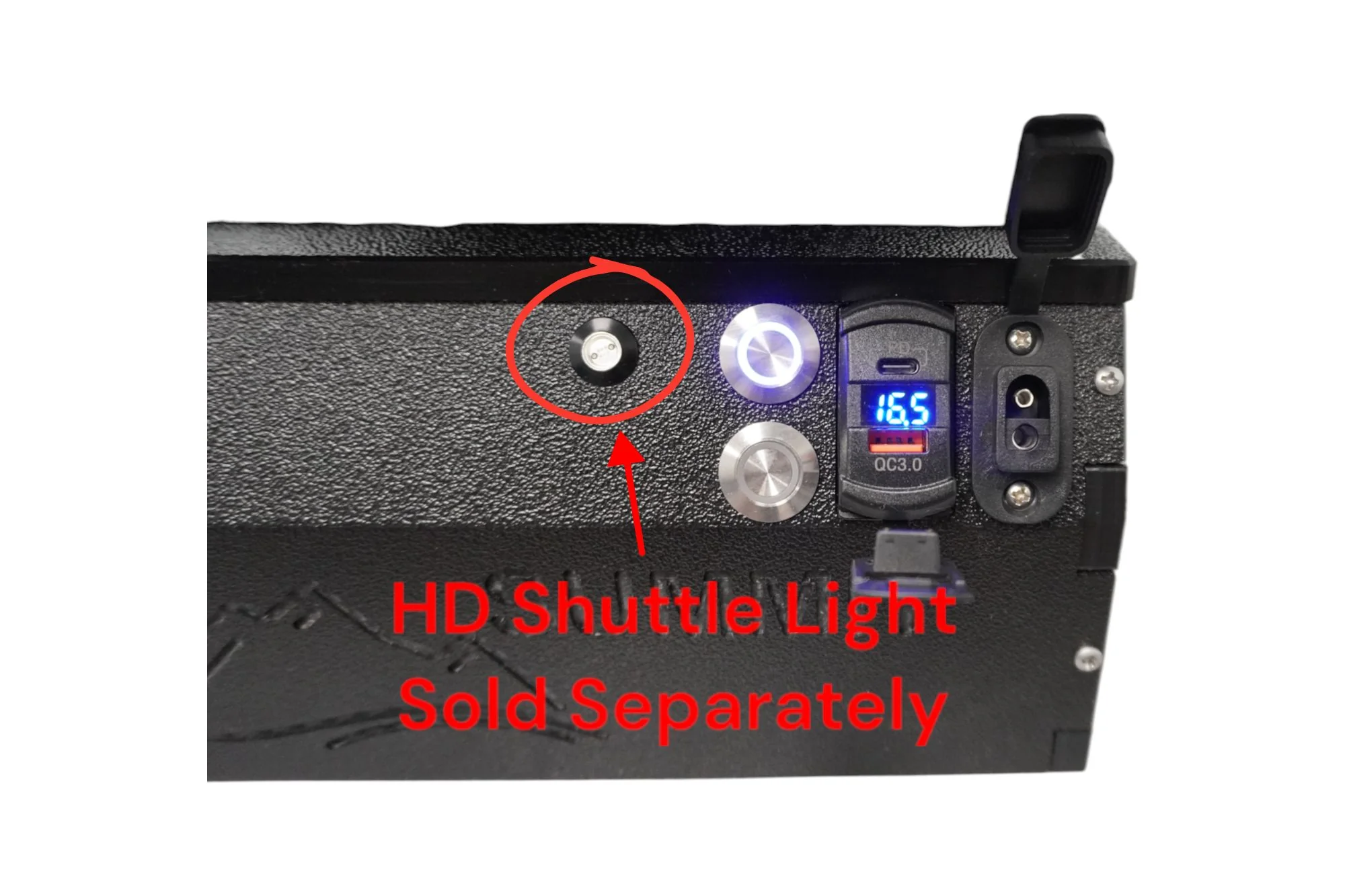

• How to Connect HD Shuttle Light to Summit HD CNC Shuttle
• Entire video on Shuttle Assembly

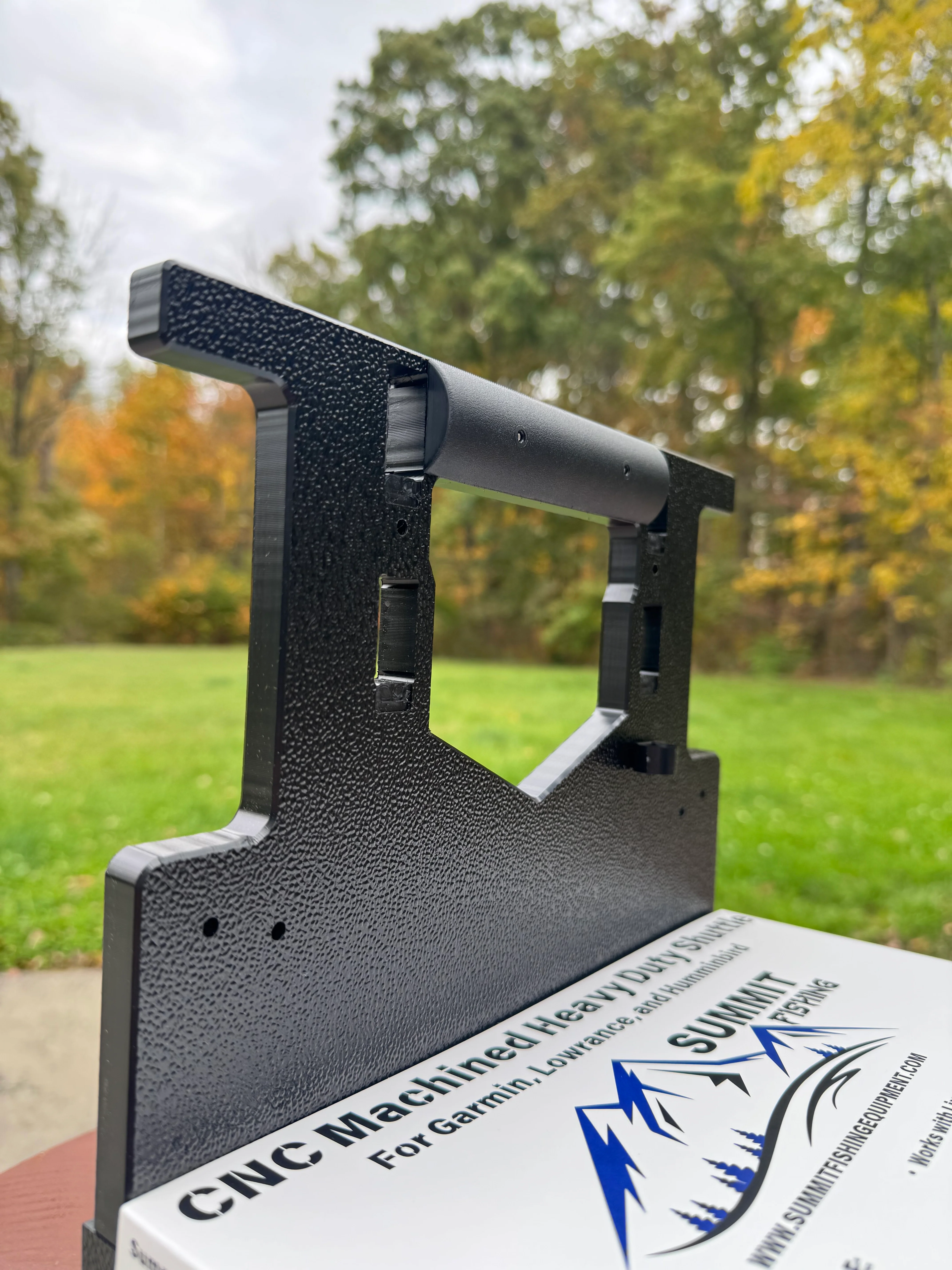

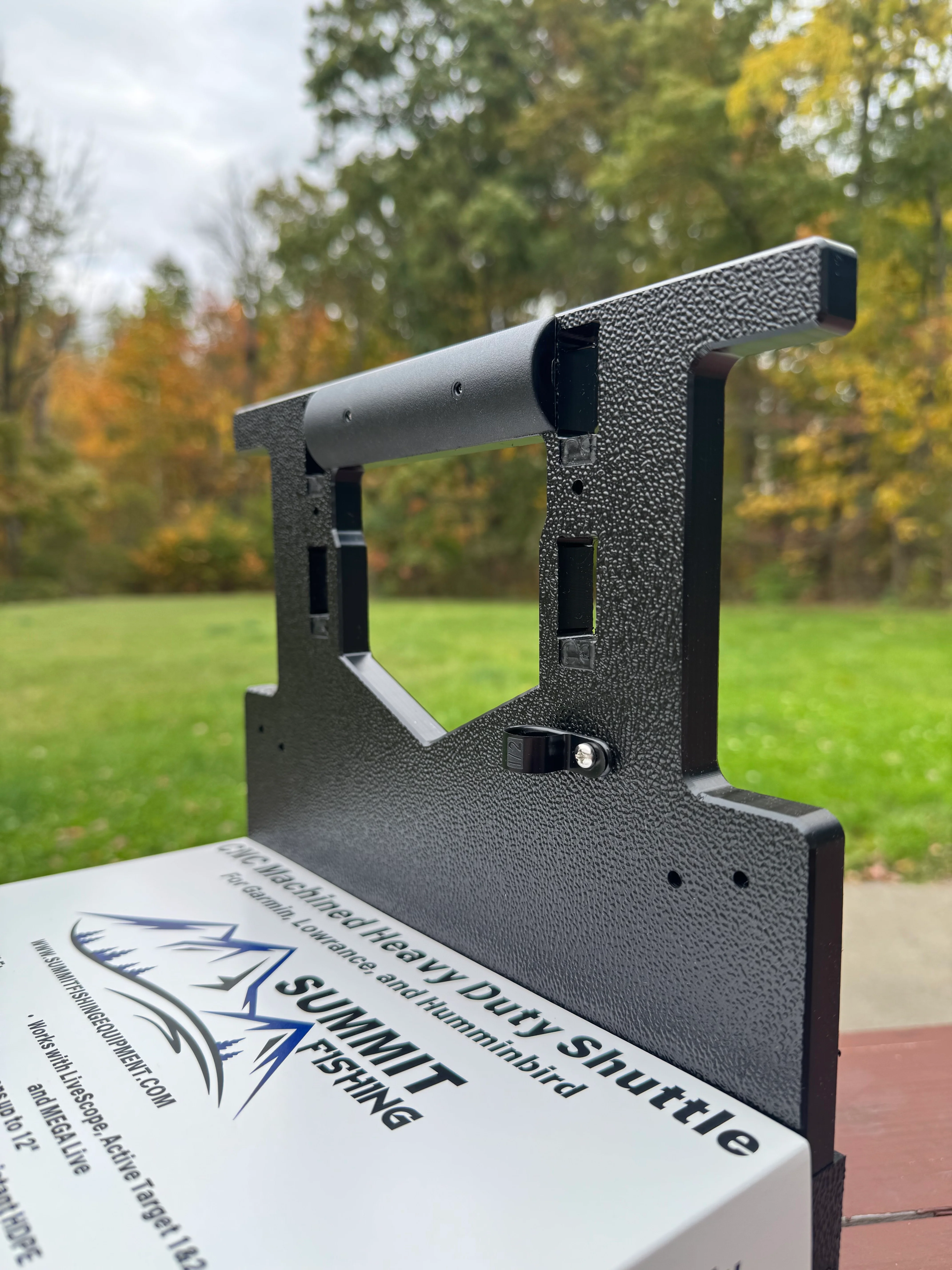

ALL SHUTTLES PURCHASED AFTER 10/24/2025 WILL INCLUDE OUR NEW ROUNDED HANDLE ATTACHMENTS!!



FAQ

• ONE SHUTTLE FITS ALL BRANDS: Fits all brand of chartplotters up to 16".
• WORKS WITH LIVESCOPE, ACTIVE TARGET, MEGA LIVE, OR ANY OTHER SONAR YOU WOULD LIKE TO MOUNT TO THE SHUTTLE.
• COMES FULLY ASSEMBLED INCLUDING WIRE HARNESS WITH TOOL-LESS QUICK CONNECTIONS.

• WE DO NOT INSTALL THE HD LIGHT.
• SHUTTLE DIMENSIONS: 7.5 L x 10.5 W x 12.25 H.
• BATTERY TRAY DIMENSIONS: LWH: 15099131, Inches - 5 7/8 x 3 29/32 x 5 1/8.
• YOU CAN USE THE GARMIN LITHIUM BATTERY BUT YOU WILL NEED TO MOVE THE BATTERY HOLD DOWN BACK. (GARMIN CHARGER WILL NOT CONNECT TO OUR SAE CHARGE PORT).
• CONTAINS ALL HARDWARE AND WIRING TO YOUR ELECTRONICS POWER CABLES.

Bag Combinations (Bags sold separately)

• ALL SCREEN UP TO 10" INCLUDING 8610 AND 106: Large Bag.
• 12" Screens: XL bag.

Compatible with ALL current electronics batteries, the following is a partial list.

• BATTERY MAX Dimension: LxWxH: 150x99x131mm, Inches - 5 7/8 x 3 29/32 x 5 1/8.
• Summit Lithium 20AH, 32 AH, and 52AH
• Amped Outdoors Dual 7.5/12/15AH, Single 18AH, 20AH, 30AH Wide, 32AH, and 52AH batteries.
• Norsk Dual 7.5/15AH, Single 20AH, 32AH, 52AH Batteries.

• Dakota Dual 10AH, 12AH, Single 18AH and 23AH Batteries.

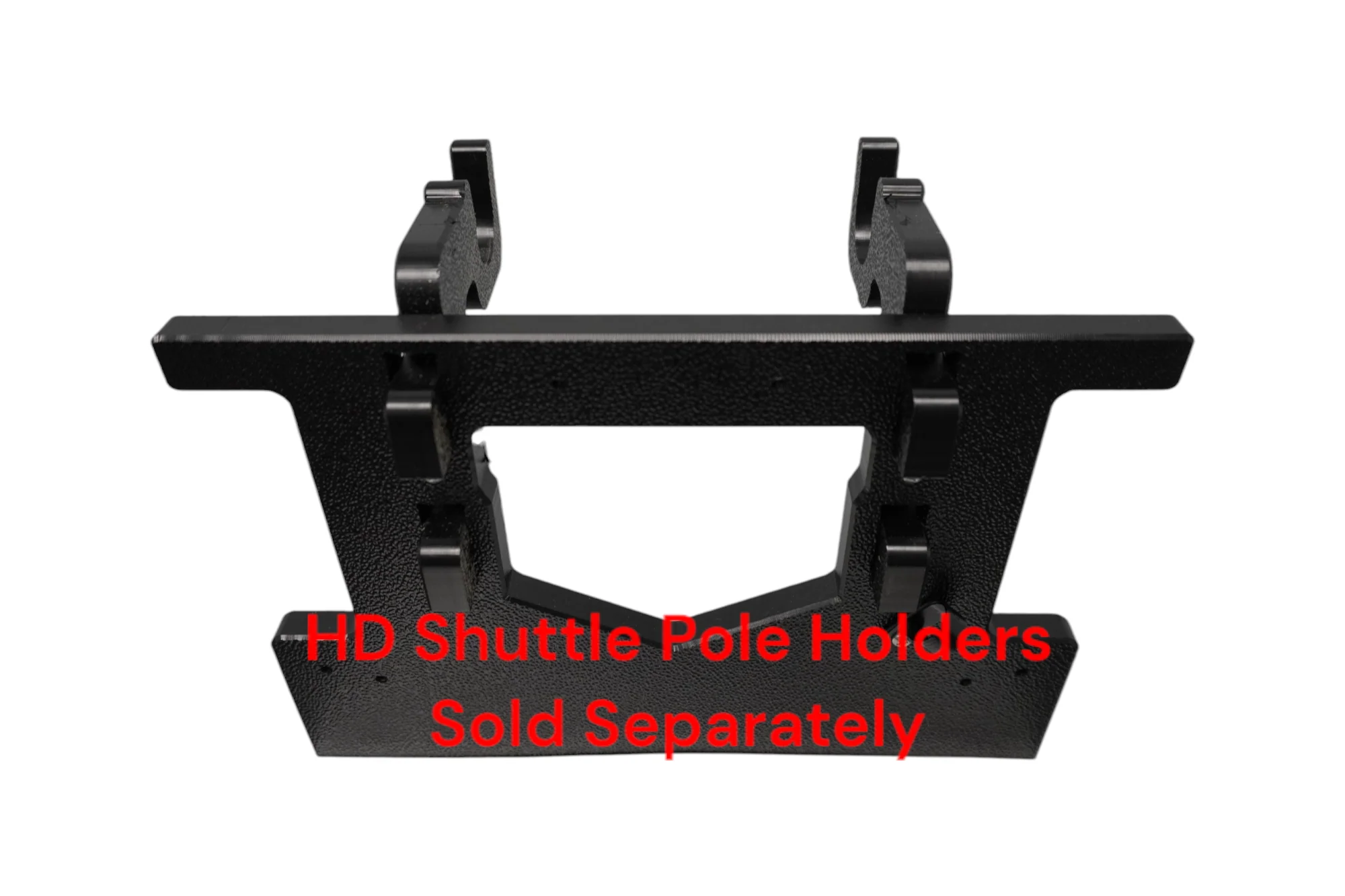

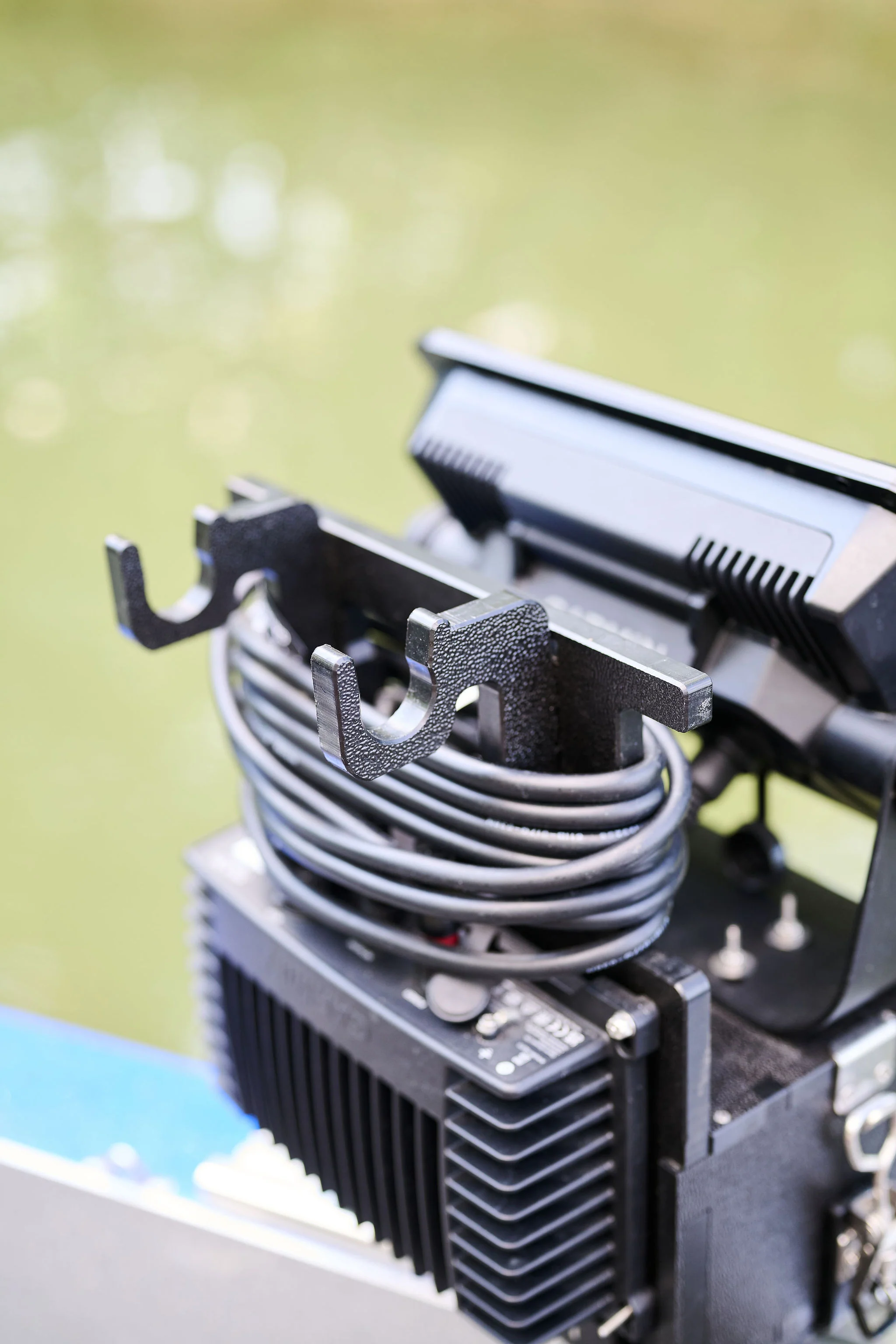

Pole holder shown in the pictures sold separately
Glow Light shown in pictures is sold separately

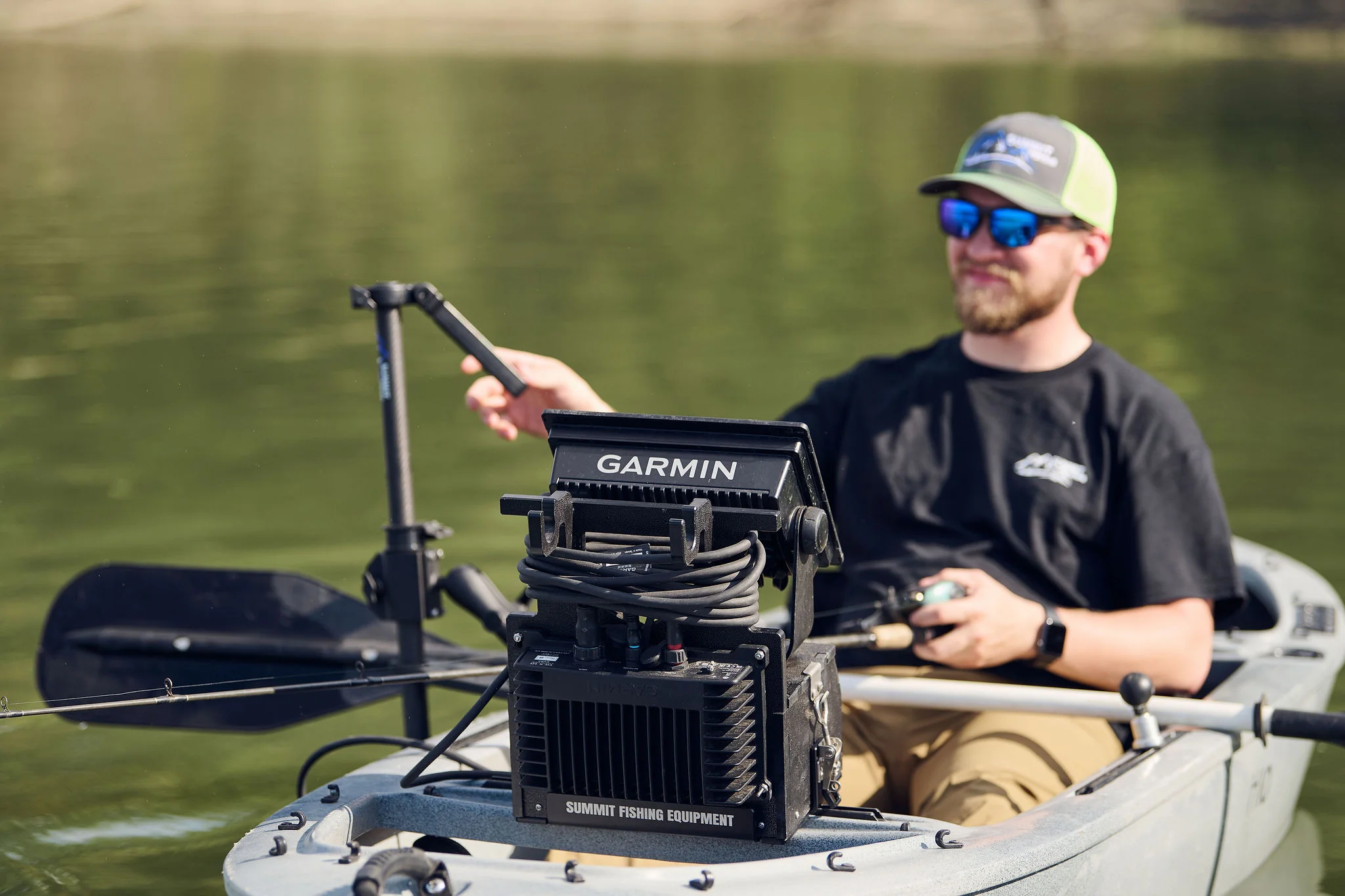

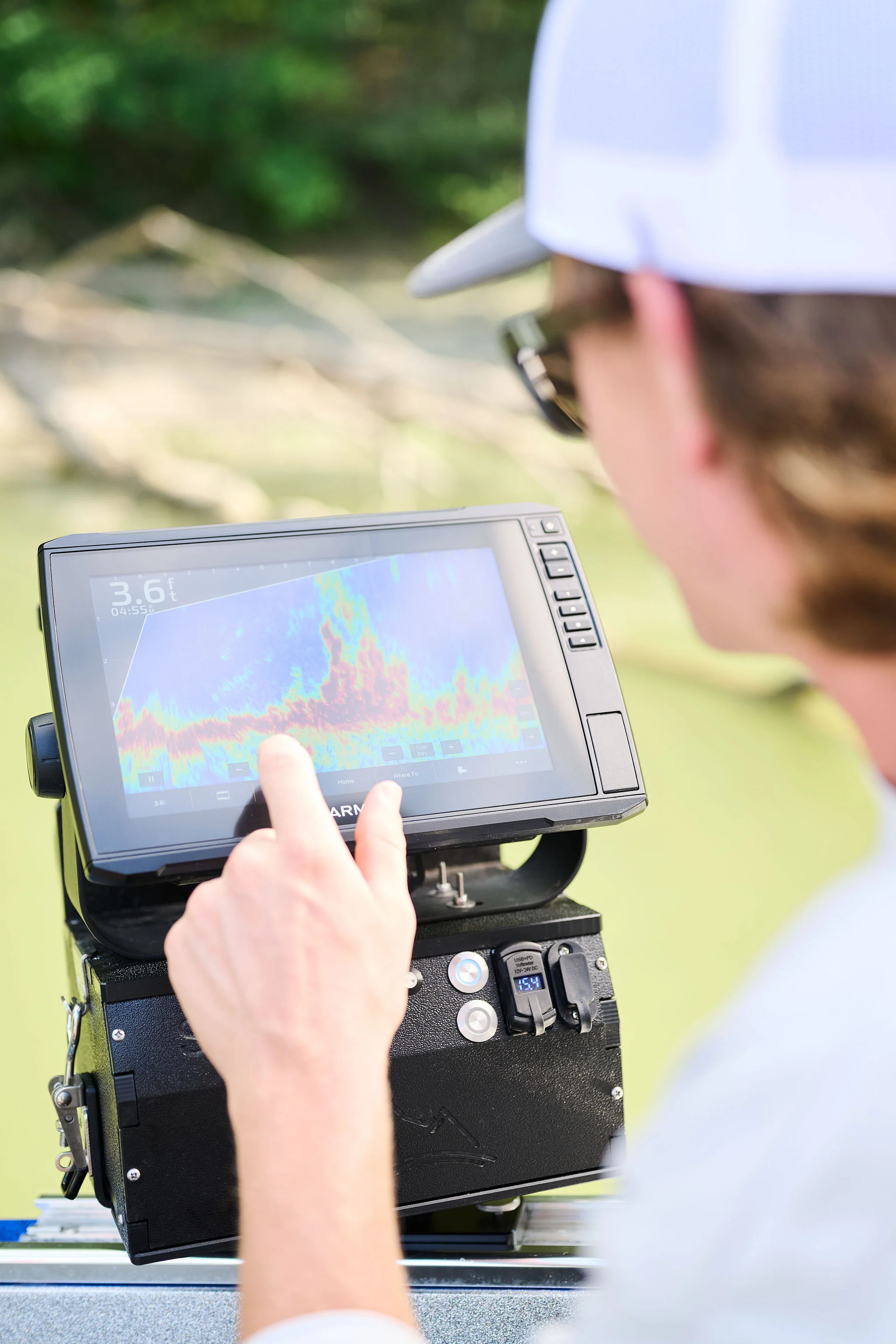

Chartplotter, transducer, shuttle bag, and transducer pole shown in pictures are not included
